Side light bulb (VAZ-2114)

1. Remove the protective cover of the headlight (see above, "Replacing the low and high beam lamp").

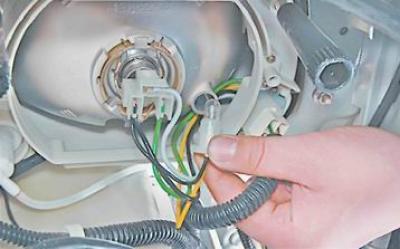

2. Without disconnecting the wires, remove the side light bulb socket from the reflector.



3. Remove the faulty lamp from the socket.



4. Insert the new lamp into the socket and install the socket into the reflector.

5. Install the protective cover of the headlight unit in place and tighten the two screws that secure it.
