Replacing the indicator lamps in the instrument cluster (VAZ-2115)

            0

The instrument cluster contains control lamps A12–1.2.

1. Disconnect the wire from the "–" terminal of the battery.

2. Remove the instrument cluster (see "Removal and installation the instrument cluster").

3. Turn the socket with the lamp counterclockwise until it stops, remove it from the combination.

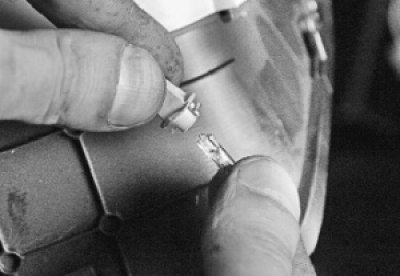

4. Remove the lamp from the socket.


4. Remove the lamp from the socket.

Note: Baseless instrument cluster bulbs are held in the sockets by tension only.


Note: Baseless instrument cluster bulbs are held in the sockets by tension only.


5. Install the lamp in the reverse order of removal.
