Comment. When looking for a faulty lamp, keep in mind that the shield is upside down. The location of the lamps on the front side of the instrument panel will be mirrored.

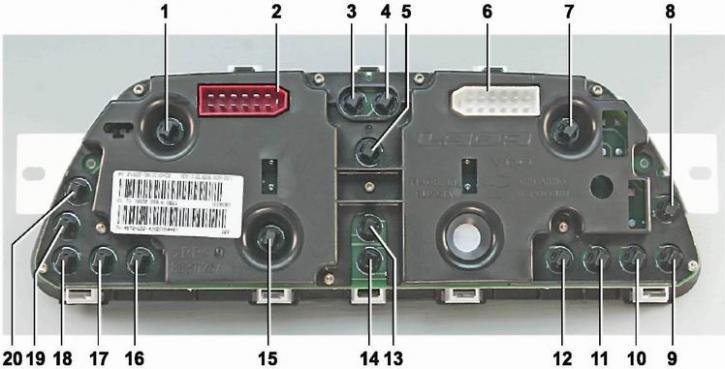

The location of the lamps on the instrument panel: 1, 5, 7, 8, 20 - backlights; 2 - socket for connecting the red block of the wiring harness; 3 - control lamp of indicators of the right turn; 4 - control lamp of indicators of the left turn; 6 - socket for connecting the white block of the wiring harness; 9 - reserve socket (airbag warning light); 10 - control lamp of emergency oil pressure; 11 - control lamp for turning on the parking brake; 12 - control lamp of the battery charge; 13 - control lamp for turning on the alarm; 14 - control lamp for a malfunction of the engine management system; 15 - odometer display backlight; 16 - control lamp for switching on the main beam of headlights; 17 - control lamp of insufficient level of brake fluid; 18 - control lamp for switching on external lighting; 19 - a control lamp of a reserve of fuel
Execution sequence
1. Remove the instrument panel (wiring harness blocks can not be disconnected) (see "Instrument panel - removal and installation").
2. To replace any lamp, turn the protruding part of the lamp socket counterclockwise and remove the socket together with the lamp from the instrument panel. Replacing a defective lamp (see table. 16.3).
3. Install a new lamp and instrument panel in reverse order.
