Removal and installation the instrument cluster (VAZ-2115)

You will need a screwdriver.

1. Disconnect the wire from the "–" terminal of the battery.

2. Remove the instrument panel shield (see "Removal and installation the instrument panel shield").

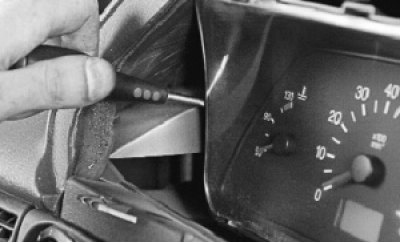

3. Remove the two screws securing the instrument cluster to the bracket.

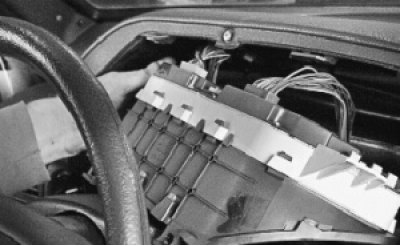

4. Remove the instrument cluster from the hole in the instrument panel.

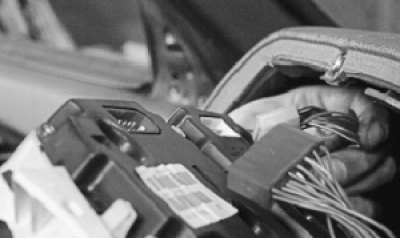

5. Disconnect the wiring harness connectors from the instrument cluster and remove it.



6. Install the instrument cluster in the reverse order of removal.
