Contents: Removal ↓ Installation ↓
Removal
1. Remove the engine oil pan (see above, "Engine Oil Pan - Gasket Replacement").

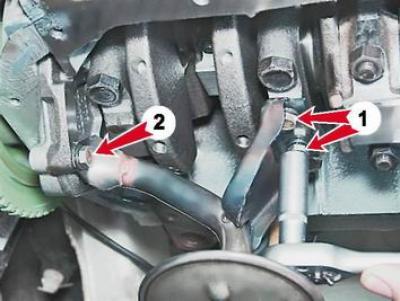

2. Key by 10 mm we unscrew the two bolts (1) securing the oil intake to the main bearing cover and the bolt (2) securing the oil receiver to the oil pump housing.
3. Remove the oil intake, removing its tube from the oil pump channel.
Note: The connection between the oil intake and the pump is sealed with a rubber ring.
Installation
Replace the sealing ring if it is damaged or has lost its elasticity.
We install the oil intake in the reverse order.
Warning! The bolt that secures the oil pickup to the oil pump is longer than the bolts that secure the oil pickup to the main bearing cap.
