Checking the alternator drive belt tension (VAZ-2115)

            0

Insufficient belt tension impairs battery charging and leads to increased belt wear.

If the belt is too tight, the generator bearings may fail.

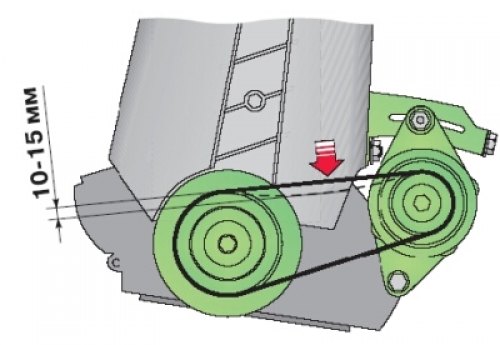

The diagram for checking the tension of the generator drive belt is shown in the figure:

The alternator drive belt should deflect by 10-15 mm with a force of 100 N (10 kgf) applied in the…


The alternator drive belt should deflect by 10-15 mm with a force of 100 N (10 kgf) applied in the middle between the crankshaft and alternator pulleys. Otherwise, adjust its tension.

(The article is taken from the website VAZbook)
