Contents: Removal ↓ Installation ↓
Note: The work is shown on the left shield. The right shield is removed and installed in the same way.
To carry out repair work you will need:
- jack;
- stand.
Removal
1. Prepare the car for repair work.
2. Remove the front wheel. For safety, install a reliable stand under the car.

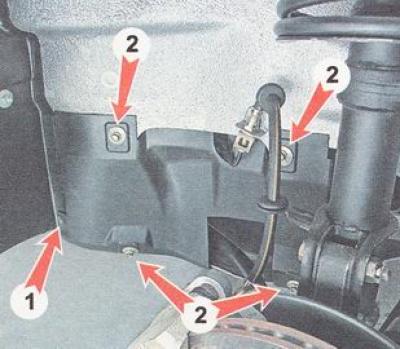

3. Using an 8 mm socket wrench, unscrew the four screws (2) and use a Phillips screwdriver to unscrew one screw (1) securing the shield.

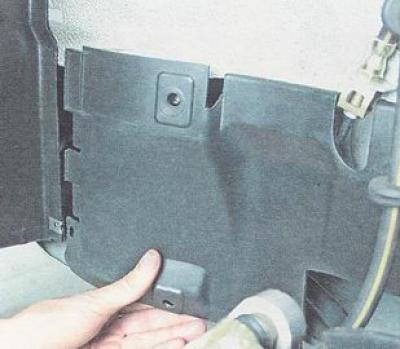

4. Disengage the shield from the front fender liner and remove the shield.
Installation
We install the shield on the car in the reverse order.
