Bumpers — design description (VAZ-2108)

Made from fine-cell polyurethane foam with the addition of 15% crushed glass fiber (figure 164). The bumper cover is attached to the aluminum beam 4. With the help of the front 6 and side 2 brackets, both the front and rear bumpers are attached to the body frame.

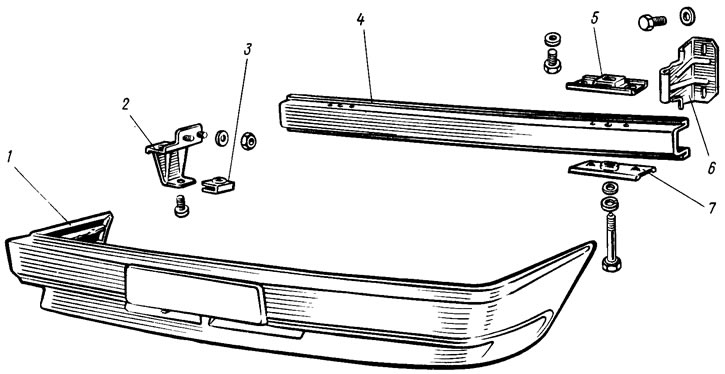

Figure 164. Bumper details: 1 - bumper; 2 - side bracket; 3 - bracket; 4 - beam; 5, 7 - mounting…

Figure 164. Bumper details: 1 - bumper; 2 - side bracket; 3 - bracket; 4 - beam; 5, 7 - mounting strips; 6 - bracket
