Note: Before assembly, thoroughly clean all parts from dirt.
Attention! The hub nut is disposable. If the flange is jammed, replace it.
Install the steering knuckle in the reverse order of removal, taking into account the following.

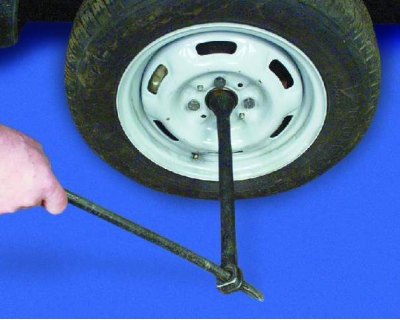

1. Once you have lowered the vehicle to the ground, tighten the hub nut to 225–250 N·m (22.5–25 kgf·m).

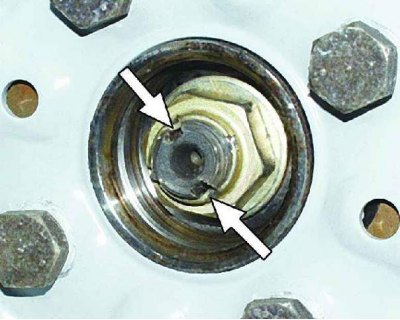

2. Stake the nut flange into the grooves of the threaded part of the drive shaft. Put on the protective cap.
3. Rock the car vigorously several times and tighten the threaded connections to the appropriate torques (see appendix 3). After running 100 km, tighten these threaded connections again to the required torques.
