Pic. 149. Windshield and rear window washers:
1 - solenoid valve for the rear window washer; 2, 5, 8, 10, 12 - PVC washer tubes; 3 - windshield washer solenoid valve; 4 - bracket for fastening the injection pump and solenoid valves; 6 - bracket for fastening the supply tank; 7 - supply tank; 9 - pressure pump; 11 - rear window washer jet; 13 - tee; 14 - windshield washer jet.
The tank 7 is installed in the engine compartment on the bracket 6 of the right mudguard and fastened with a clamp. At the bottom, the tank has a branch pipe, which is connected by a tube 5 to the pressure pump. The two mouths of the tank are closed on top with a lid and a plug. A filter is installed under the cover. The tank with a lid and a plug are made of polyethylene.
An injection pump 9 and solenoid valves 1 and 3 are mounted on a bracket next to the tank. The pump and valves are connected by tubes to jets (pic. 150), whose bodies are made of plastic. The windshield washer jets are installed in the holes of the outer hood panel, the rear window washer - in the roof panel above the tailgate.

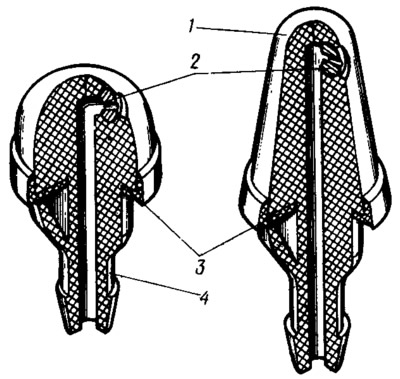

Pic. 150. Windshield and rear window washer jets:
1 - rear window washer jet; 2 - sprayers; 3 - seals; 4 - windshield washer jet.
The liquid from the tank is pumped through solenoid valves (when voltage is applied to them) through the tubes to the washer jets. Through the nozzles 2, inserted into the spherical sockets of the housings 4 of the jets, the liquid is supplied to the upper zone of the sectors described by the cleaner brushes. Regulation of the direction of the jet is carried out by changing the position of the nozzle in the jet socket. To do this, insert a needle into the jet sprayer hole and gently turn the sprayer so that the liquid jet hits the desired area.
In the warm season, clean water can be poured into the tank, and in the cold season (up to minus 25°С) only a mixture of 25... 33% liquid NIISS-4 (TU 38-1-02-30-76) or «Auto glass cleaner-2» (TU 6-15-1363-82) with water (30 cm3 for 1 liter of water).
The operation of the cleaners and washers is controlled by their switching lever. This lever is located on the right side of the steering column and has the corresponding symbols - position indicators. Each of the eight positions of the lever corresponds to a certain mode of operation of the cleaners and washers:
- I - wipers and washers of the windshield and rear windows are turned off;
- II - non-fixed position of the lever, the intermittent operation of the windshield wiper is on;
- III - fixed position of the lever, the intermittent operation of the windshield wiper is on;
- IV - the first speed of the windshield wiper is on;
- V - the second speed of the windshield wiper is on;
- VI — (to myself) non-fixed position, windshield washer and windshield wiper on at the same time;
- VII — (Push) fixed position of the lever, the rear window cleaner is on;
- VIII — (Push) non-fixed position of the lever, the rear window wiper and washer are on.
On VAZ-2109 and 21093 vehicles in the variant version, cleaners and headlight washers can be installed.
